Legato™
Block Code
Product Drawing L x W x H (mm) Weight
LG1
View PDF
400 x 800 x 800 590kg
LG2
View PDF
400 x 800 x 800 600kg
LG3
View PDF
800 x 800 x 800 1180kg
LG4
View PDF
800 x 800 x 800 1200kg
LG5
View PDF
1200 x 800 x 800 1775kg
LG6
View PDF
1200 x 800 x 800 1800kg
LG7
View PDF
1600 x 800 x 800 2365kg
LG8
View PDF
1600 x 800 x 800 2400kg
LG9
View PDF
1600 x 800 x 800 1765kg
LG10
View PDF
1600 x 800 x 800 1800kg
LG SPREADER
View PDF
1600 x 800 x 800 1800kg
LG BENDI
View PDF
1590 x 800 x 800 2240kg

LG1

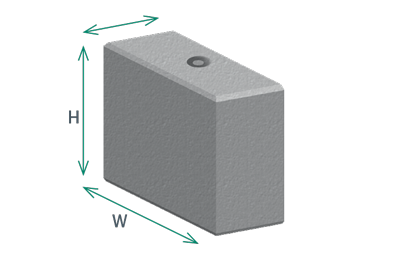

Legato™ Interlocking Blocks LG1

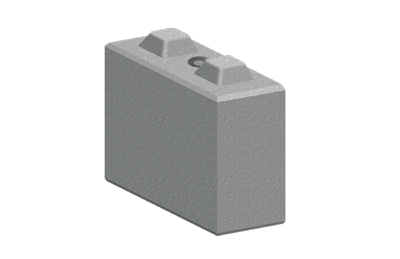

LG2

Legato Interlocking concrete block LG2

LG3

Legato Interlocking concrete block LG3

LG4

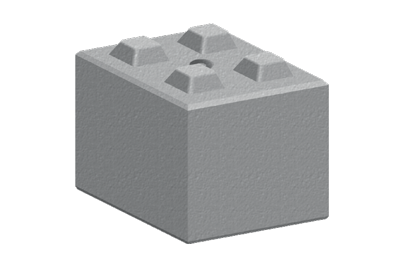

Legato Interlocking concrete block LG4

LG5

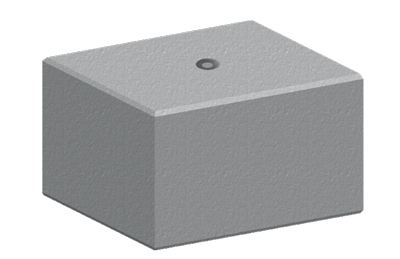

Legato Interlocking concrete block LG5

LG6

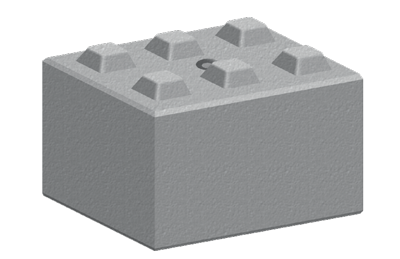

Legato Interlocking concrete block LG6

LG7

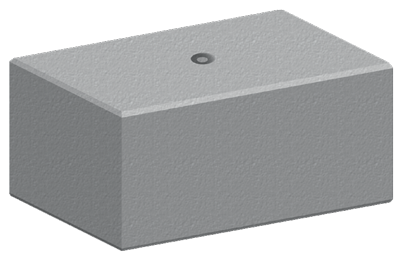

Legato Interlocking concrete block LG7

LG8

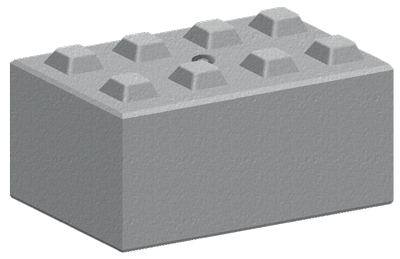

Legato Interlocking concrete block LG8 - for block walls flood defence

LG9

Legato Interlocking concrete block LG9

LG10

Legato Interlocking concrete block LG10

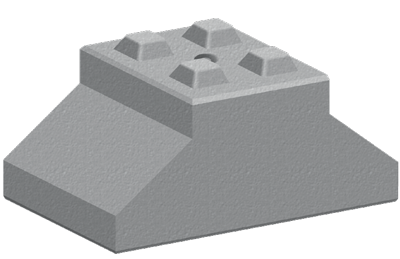

LG Spreader

Legato Interlocking concrete block LG Spreader

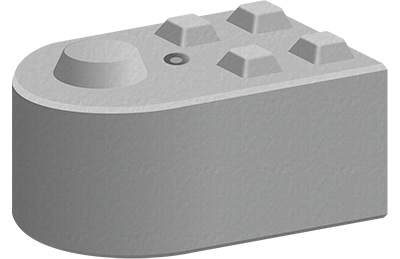

LG Bendi

Legato Interlocking concrete block LG Bendi

Legato block showing 5 tonne lifting clutch

Legato Interlocking concrete block 5 tonne lifting clutch

Typical loads… Legato block walls

1. These loading figures are for guidance only – if in doubt consult a structural engineer.
2 The retained material should be allowed to naturally fall against the wall as it is stacked.
3 These loading tables relate to specific materials with a typical density and angle of repose, stacked to specific heights and slopes.
4 The client should ensure that the walls are built on a suitable base.
5 The density and angle of repose of each material shown are typical values only.

Legato Typical Loading diagram (various materials)
Legato Typical Loading diagram (various materials)

Further Legato block example calculations can be viewed in our Stability & Loading Calculations Directory.

For more information call 01952 588 885
