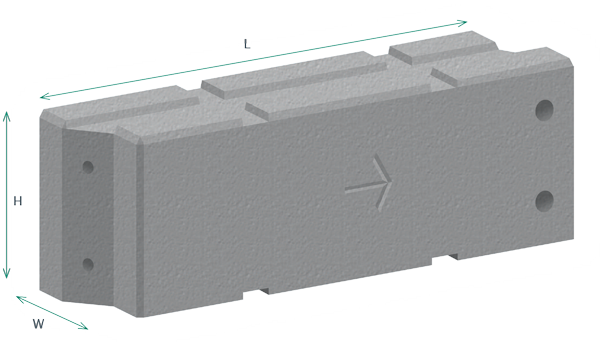

TCVB Block Code Product Drawing Overall
length
(mm)
Modular
length
(mm)
W x H (mm) Weight
V28 3150 3000 450 x 800 2500kg

Important note:
It is the customer’s responsibility to ensure appropriate structural checks are carried out before any precast concrete products are installed.

TVCB’s should only be lifted/off-loaded from above using the central 5 tonne pin anchor and clutch or the four M24 threaded sockets and lifting loops.
